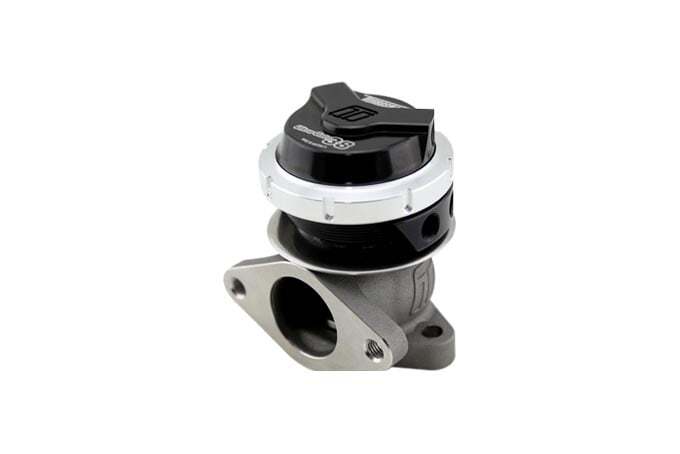

The GenV WG38 UltraGate38 External Wastegate is a Motorsport proven, cost effective external wastegate.
The Turbosmart GenV range is the Highest Flowing Wastegate range in the World.

The GenV provides extensive user configuration, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red and Purple
Wastegate Position Sensor Version & Upgrade

SUPPLIED WITH

GenV Wastegate unit

All Springs Included in Box

Wastegate pre-fitted as per description

GenV SS316 Valve seat

GenV UltraGate SS Gaskets

Mounting Bolts and Nuts

Collar tool (master/slave)

3, 5, 7, 14 psi spring kit (1x spring installed)

4 x 1/8” NPT plugs (1x installed)

2 x 1/8” NPT nipples

Turbosmart Decal
