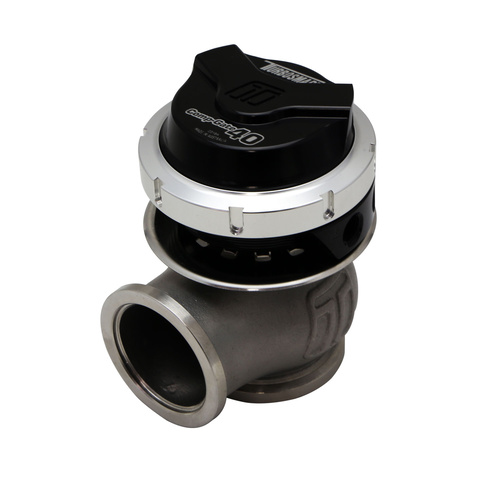

The Gen-V WG40 Comp-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

They are also available in Motorsport and compressed gas-only versions for those requiring specific applications.

Features:
  • Direct swap for Turbosmart Gen 4 Comp-Gate 40, inlet is the same as other 38/40mm V-band wastegates
  • 40mm valve size
  • High temp spring combinations from 3 – 26psi supplied in the box
  • 1/8”NPT ports
  • V-band clamp mounting system to suit 1-3/4” OD pipe
  • Locking collar for compact size and easy spring changes
  • Available in Motorsport and Compressed Gas versions
  • Hall Effect, Non-Contact Position Sensor Option Available

Supplied with
  • Wastegate unit (pre-assembled with spring as per order)
  • SS316 Valve seat
  • Inlet V-Band
  • Inlet SS304 weld flange
  • Outlet V-Band
  • Outlet SS304 weld flange
  • Collar tool (master/slave)
  • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
  • Sticker
  • Instruction card



  • WARNING - Proposition 65 Compliance Statement:
    It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
    Important Emissions Note:
    This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.



(TS-0552-1012)

SKU TS-0552-1012
Barcode # 9.33E+12
Brand Turbosmart
Shipping Weight 1.4100kg
Shipping Width 0.150m
Shipping Height 0.140m
Shipping Length 0.180m
Shipping Cubic 0.003780000m3
