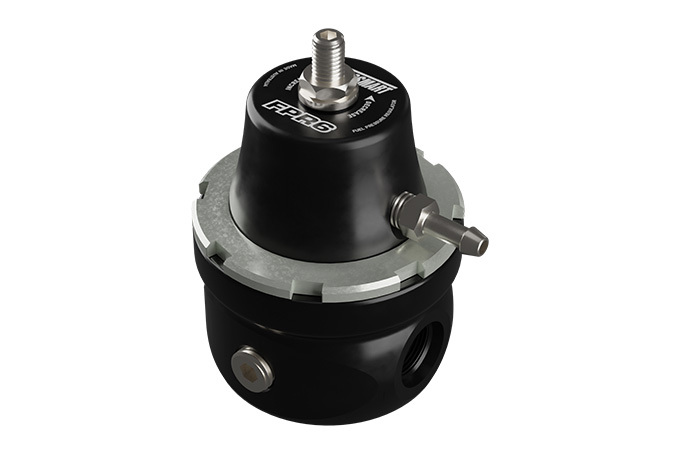

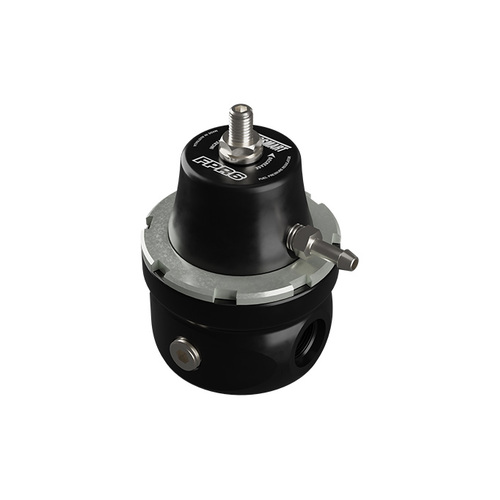

The Turbosmart FPR6 Series provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -6 / 6AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm the FPR6 Series is suitable for all Fuel types including Race Fuel and aggressive leaded fuels. Our FPR6 Range includes 6AN inlet, outlet and return port and is Available in Standard (35psi to 80psi) as well as LP (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 1200HP systems.

Featuring two -6AN inlet ports, one -6AN return port and 1/8NPT gauge port, 35-80 PSI base pressure adjustment, 1:1 ratio, premium MILSPEC diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 1200hp fuel systems. Turbosmart FPR’s feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same.

Features
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio & Response
Adjustable Pressure
1/8 NPT Gauge / Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data & Spec

Data sheet
