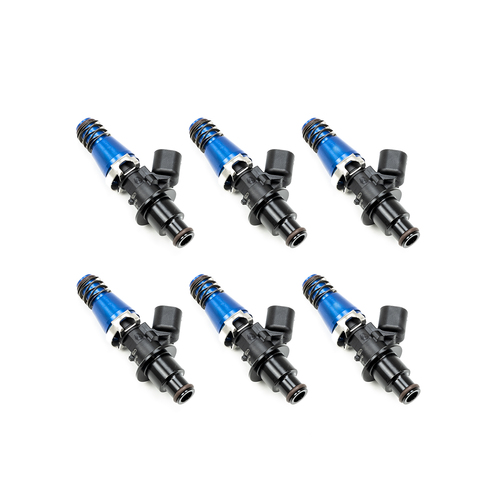

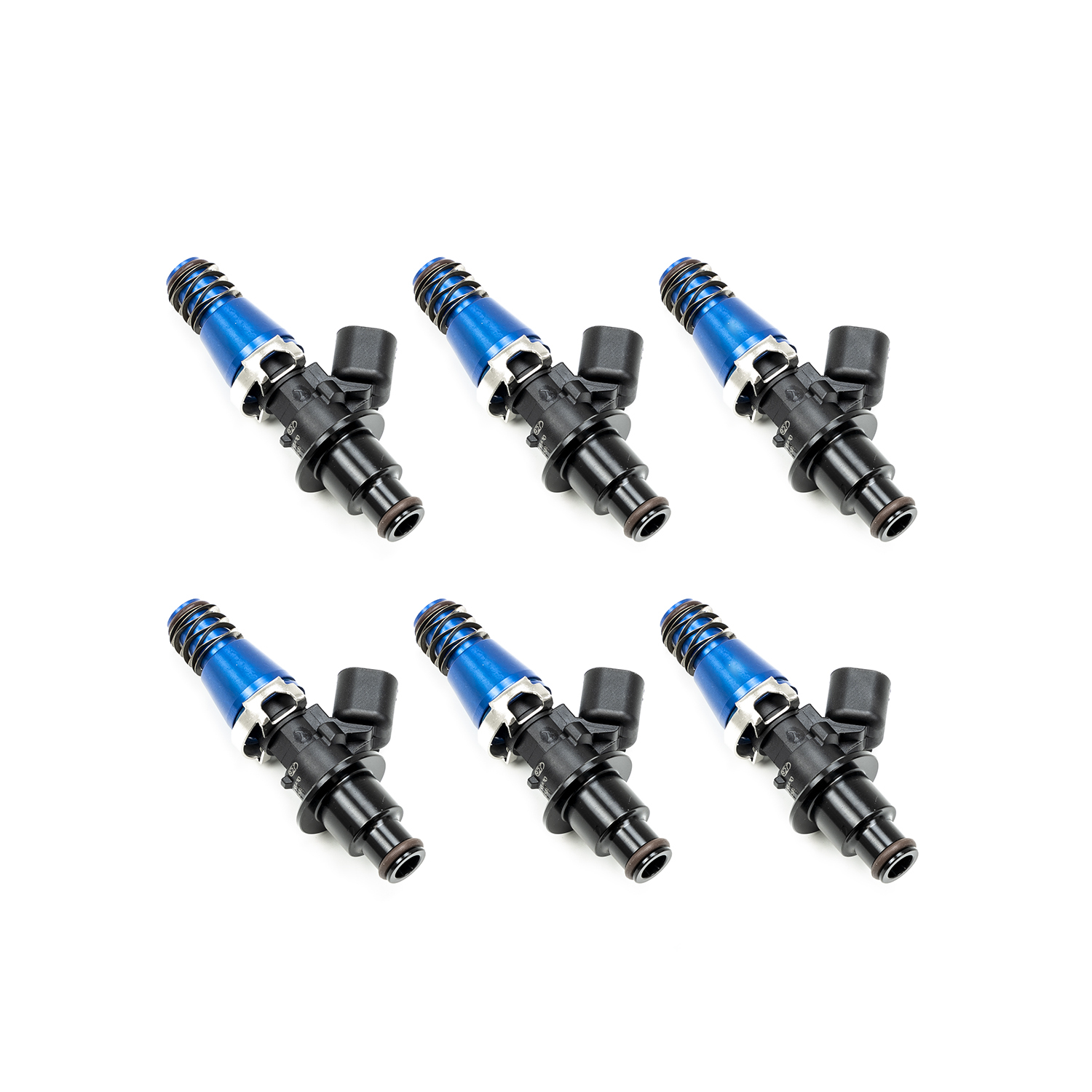

ID 2600-XDS Set of 6 Injectors high impedance fuel injector with electrical connector. 60mm length, 11mm (blue) adaptor top, 14mm lower. Includes Radium lower adapter for air-assist manifold. For Toyota/Lexus 2JZ GE Air Assisted.
The ID2600-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport.
The ID2600-XDS was developed specifically for use with liquid fuels, featuring corrosion resistant internals, and long term compatibility with ethanol and methanol.
The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x.
The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.
Basic Specifications
- Nominal Flow Rate – 2600cc/min @ 3.0 Bar (43.5 psi)
- Maximum Differential Fuel Pressure – 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
- Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
- Electrical Connector – USCAR
