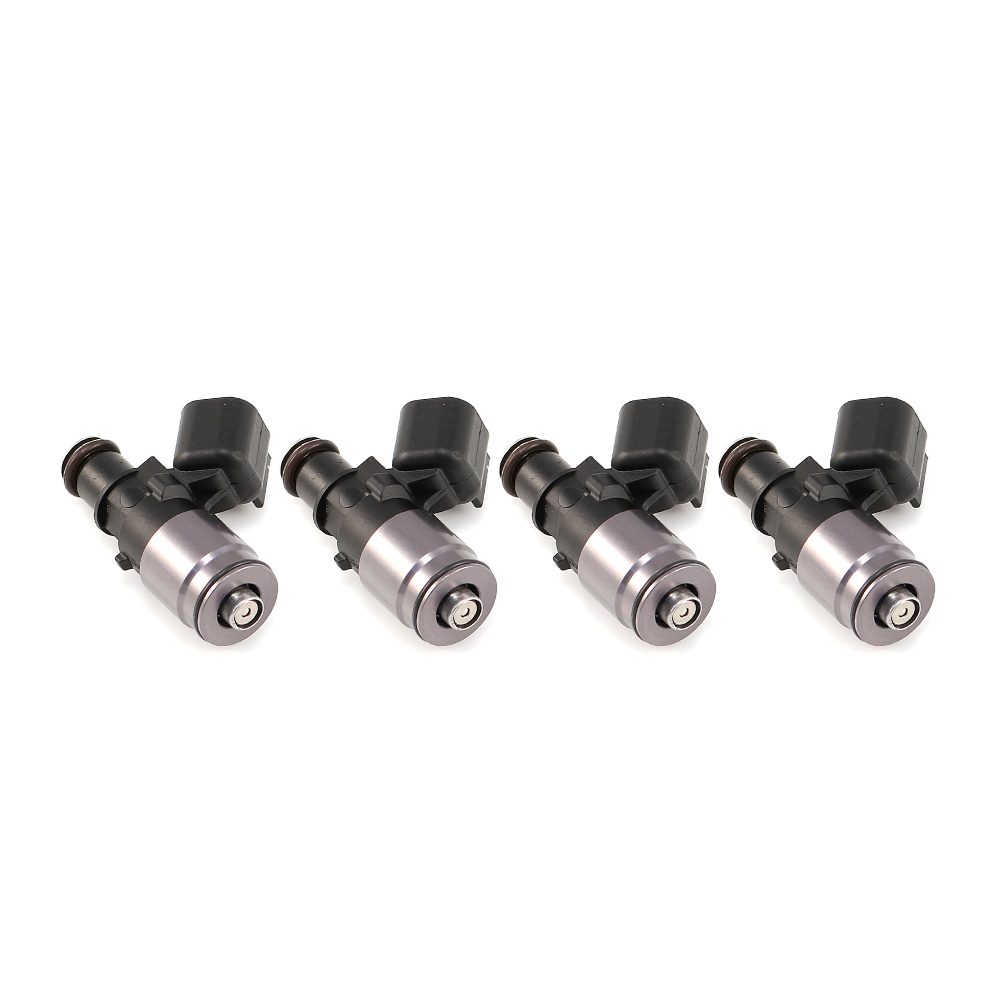

ID 2600-XDS Set of 4 Injectors including 11mm machined top, WRX 16B bottom adapters, plugs and pins. Direct Plug and Play for the Subaru BRZ and Toyota 86, GT86, FA20. These can also be used in some WRX and STI applications where a ultra short injector is required i.e for extra clearance on twisted turbo set ups.
The ID2600-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport.
The ID2600-XDS was developed specifically for use with liquid fuels, featuring corrosion resistant internals, and long term compatibility with ethanol and methanol.
The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x.
The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.
Basic Specifications
- Nominal Flow Rate – 2600cc/min @ 3.0 Bar (43.5 psi)
- Maximum Differential Fuel Pressure – 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
- Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
- Electrical Connector – USCAR
