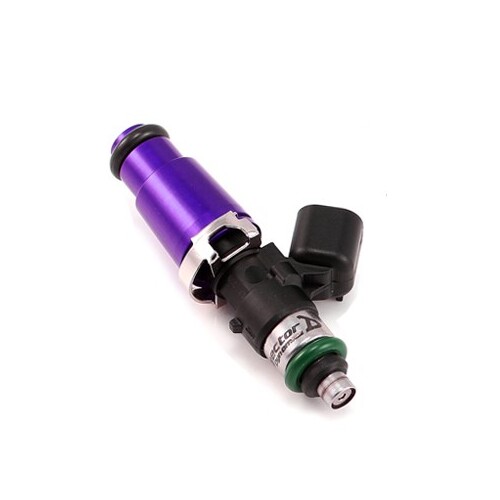

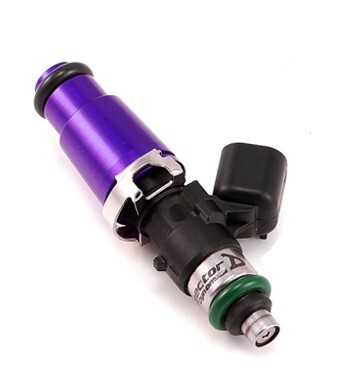

ID 1050-XDS Single Injector 60mm length including 14mm purple adapter top, 14mm lower O-ring, plug and pins.
The ID1050-XDS is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300-XDS, and ID1700-XDS. Like the ID1300-XDS and ID1700-XDS, the ID1050-XDS is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050-XDS offers numerous improvements, and is sure to become the new reference.
Basic Specifications
Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR
