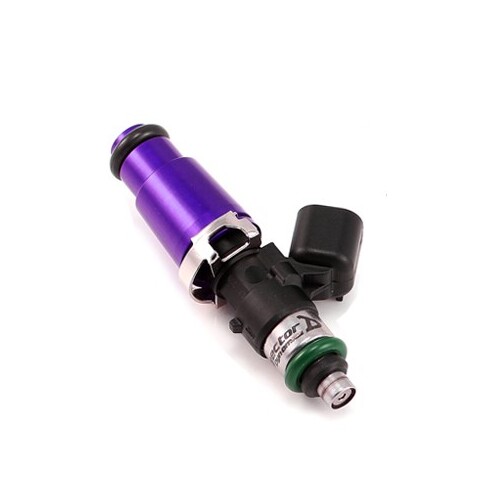

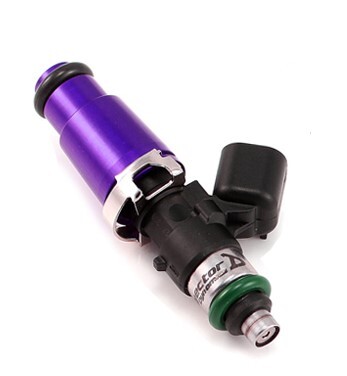

ID 1700-XDS Single Injector 60mm length including 14mm purple adapter top, 14mm lower O-ring, machined lower O-Ring retainer to 11mm, plug and pins.

The ID1700-XDS was designed to fill the gap between the ID1300-XDS and the ID2600-XDS, and like both, it features corrosion resistant internals making it compatible with all known automotive fuels.

A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700-XDS immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700-XDS excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

Application Notes

The ID1700-XDS was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700-XDS will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2600-XDS, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300-XDS will provide this, and is capable of approximately 150hp per injector on E85.

Basic Specifications

  • Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
  • Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
  • Electrical Connector – USCAR

(1700.60.14.14-O)

  • The ID1700-XDS is the evolution of the ID1700x
  • Corrosion resistant all stainless steel internals make it compatible with all known fuels, capable of extended service life with corrosive fuels
  • Ideal for E85, Ethanol, Methanol, Hydrocarbon fuels, can be used with Gasoline for high horsepower applications
  • Compact body allows fitment in over 200 applications including current and future engines utilising short body injectors
  • Stronger magnetic circuit offers stable operation up to 7 bar
  • Replaceable inlet filter extends service life
SKU 1700.60.14.14-O
Brand Injector Dynamics
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.003000000m3
