The "conversion" fuel rails convert the OEM side feed fuel injector setup to top feed allowing the use of high flow fuel injectors (not included). The fuel rail injector bores are 14mm ID. Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser engraved for a high quality surface finish. The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85. Machined press-fit spacers are included to thermally insulate intake manifold heat transfer.

The four billet injector seats are anodized and laser etched and provide a sealed receptacle for top feed fuel injectors. The seats are designed for injectors with 14mm lower O-rings.



20-0568-02 FUEL RAILS, TOP FEED CONVERSION, SUBARU EJ

For the 20-0568-02 conversion fuel rails, do NOT purchase "WRX Fitment" injectors. Read below regarding injector fitment information.

Below are some of the many fuel injectors that are a direct fit:

Injector Dynamics ID850-34-14-14
Injector Dynamics ID1050x-34-14-14
Injector Dynamics ID1300-34-14-14
Injector Dynamics ID1700-34-14-14
Injector Dynamics ID2600-34-14-14
Evolved Injection DPI550-38-14-14
Evolved Injection DPI650-38-14-14
Evolved Injection DPI850-38-14-14
Evolved Injection DPI1000-38-14-14
Evolved Injection DPI1200-38-14-14
Evolved Injection DPI1300-38-14-14
Evolved Injection DPI2200-38-14-14
RC Engineering SM2-0310
RC Engineering SM2-0370
RC Engineering SM2-0450
Deatschwerks 16U-00-0042-4
Deatschwerks 16U-00-0050-4
Deatschwerks 16U-00-0065-4
Deatschwerks 16U-00-0090-4
Deatschwerks 16M-00-1500-4
Deatschwerks 16M-00-2200-4

20-0568-02 KIT INCLUDES:

-Black Anodized Laser Etched Aluminum Fuel Rails (x2)
-Green Anodized and Laser Etched 22mm Injector Seats (x4)
-Thermal Insulating Press-In Spacers, 15mm (x4)
-Thermal Insulating Press-In Bolt Washers (x4)
-Stainless Steel M8x1.25 Mounting Bolts (x4)

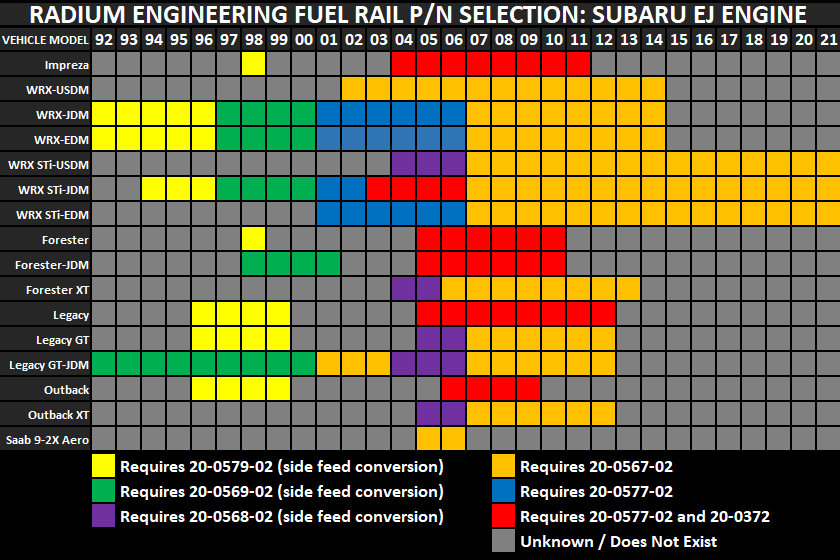

Reference the chart below to be sure the proper fuel rails are ordered.
